DC meter on-board voltage monitoring for Grundig TS1000
Ideal for troubleshooting in the event of malfunctions on the device

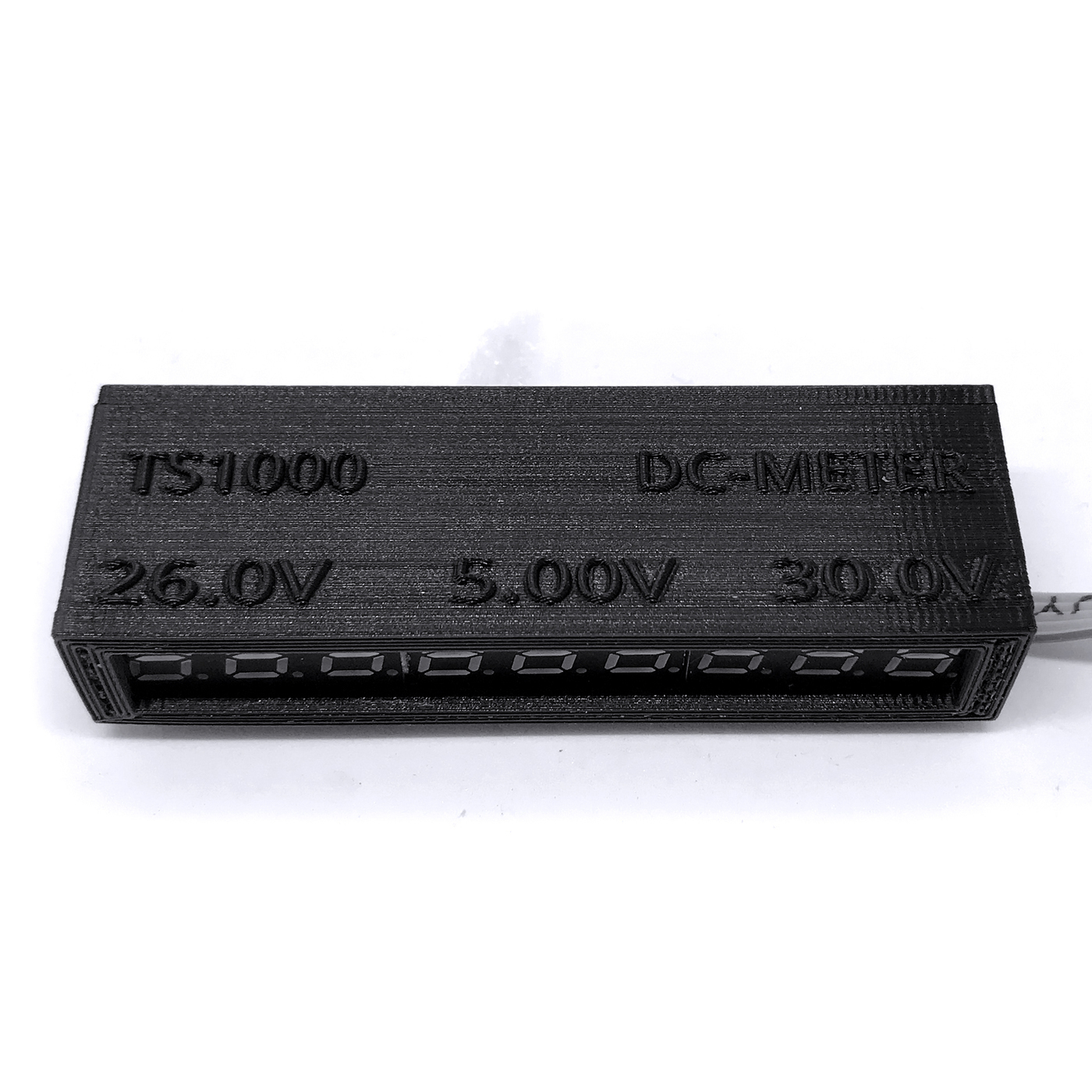

- DC meter for the Grundig TS1000 with three voltmeters: 26 volts, 5 volts, 30 volts (colors may vary)
- The voltages are tapped on the service board (soldered)
- The voltmeters are pre-adjusted and wired for the respective display range.
- Ideal for troubleshooting in the event of malfunctions on the device.
- 1x DC meter on-board voltage monitoring for Grundig TS1000 consisting of: 1x DC meter with 3 voltmeters (26 volts, 5 volts, 30 volts), 1x wired cable set, 1x adhesive strip for attachment, 1x detailed installation instructions in German and English.
- worldwide shipping from €7.45
- Budget Shipping just 2,95 € (domestic Germany)
- One month right of withdrawal
SKU: 10052
The Grundig TS1000 works with 3 on-board voltages. These on-board voltages are generated on several circuit boards. If an on-board voltage fails, troubleshooting begins. With the DC meter you can see the on-board voltages at a glance. The DC meter is attached to the original Grundig service circuit board. The service circuit board was installed in every machine at the factory.

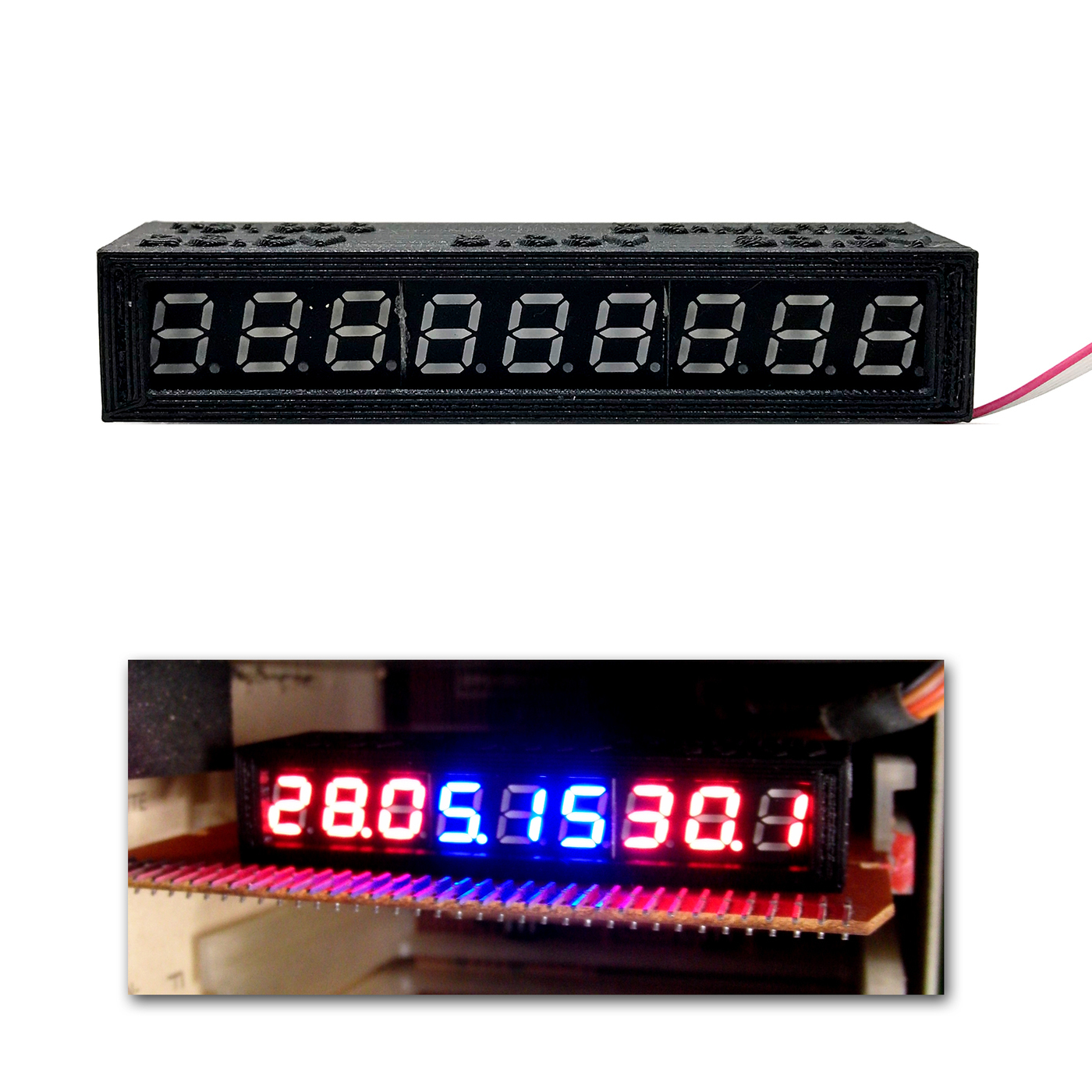

The DC meter consists of 3 voltage meters. The voltmeters are pre-adjusted and wired for the respective display range.
The voltages are tapped (soldered) at the pin strip of the service board.
The DC meter consists of 3 voltage meters. The voltmeters are pre-adjusted and wired for the respective display range.
The voltages are tapped (soldered) at the pin strip of the service board.
