Premium motor capacitors 5μF for Grundig TS1000 2pcs.

Capacitors with solder lugs
Custom-fit installation and matching specifications for Grundig TS1000
Metallized polypropylene aluminum body with metal bolts
Motor capacitors in MKP-Si technology with overpressure switch comply with EN 60252 according to safety class P2
exact technical specifications see below
2x HYDRA motor capacitors 5μF series 500 with 30,000 hours lifespan, 2x M8 lock washer, 2x M8 nut

€12.95*

Content: 2 Piece (€6.48* / 1 Piece)

Ships tomorrow if order is paid by 2:00 p.m
worldwide shipping from €7.45
Budget Shipping just 2,95 € (domestic Germany)
One month right of withdrawal

SKU: 10060

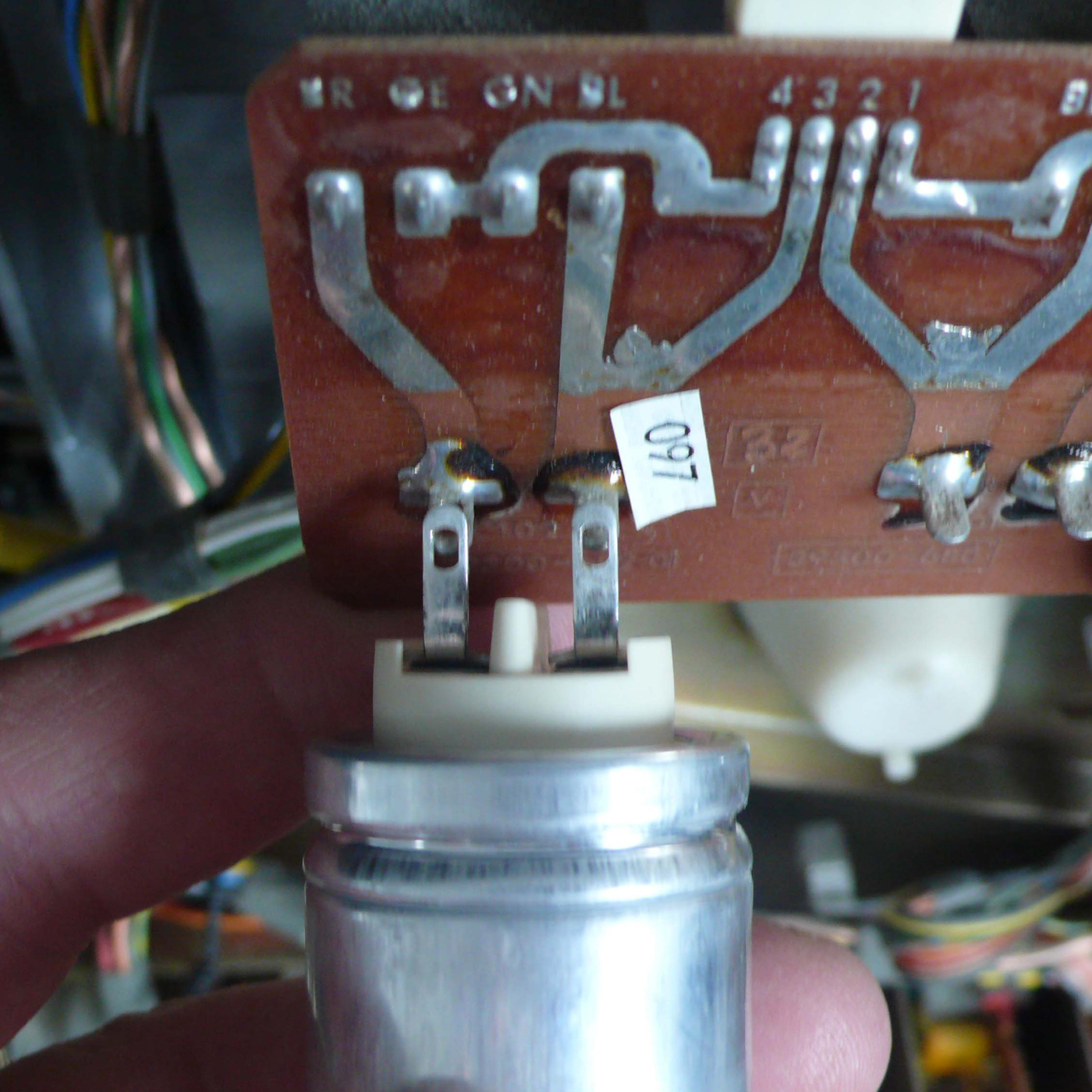

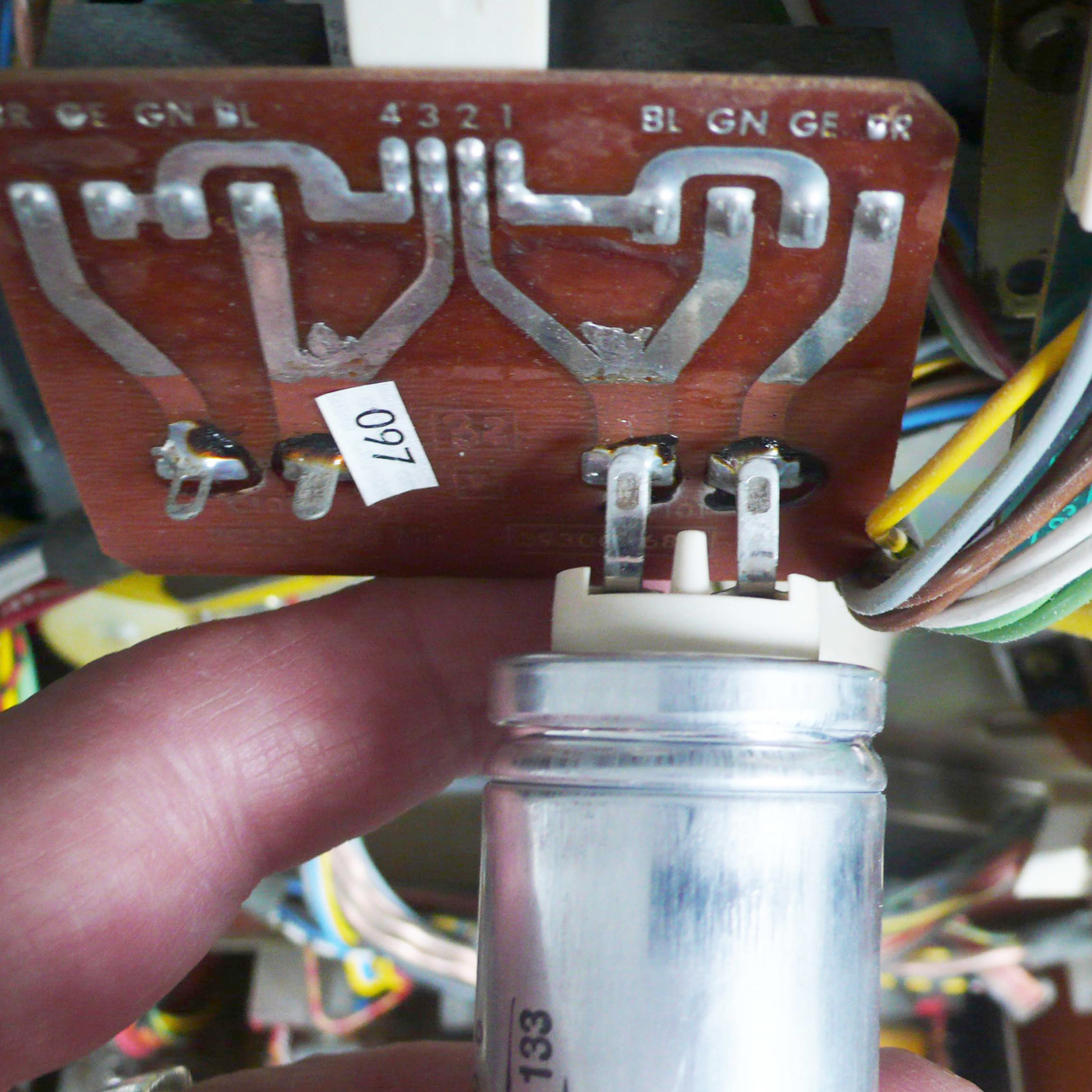

The drive capacitors of the Grundig TS1000 are in need of an overhaul after 40 years. Both built-in capacitors are screwed to the die-cast chassis with a threaded bolt. The capacitors, which are equipped with soldering lugs, are soldered to the Grundig circuit board with a precise fit. Distance and width of the contact tracks correspond to the original specification. The capacitors are produced in the EU.
Technical specification

Rated voltage 400V - 500V AC
Rated frequency 50 Hz / 60 Hz
Capacitance tolerance ± 5%
Max. permissible operating voltage 1.1 x UN
Max. permissible operating current 1.3 x IN
test voltage connection / connection 2.0 x UN; 50Hz; 2 s
test voltage connection / housing 3.6 kV; 50Hz; 2 s
Creepage distances ≥ 8 mm
Clearance ≥ 6 mm
Fastening M 8 x
Max. tightening torque 5 Nm (M 8 x 10)
Climate class 25/85/21 according to IEC 60068
Temperature range - 25°C ... + 85°C
Service life classes -25/+85°C Class A - 30,000 h - 420 V
Installation interior
Any installation position
Protection class IP 00 - without protective cover
EN 60252 standard
