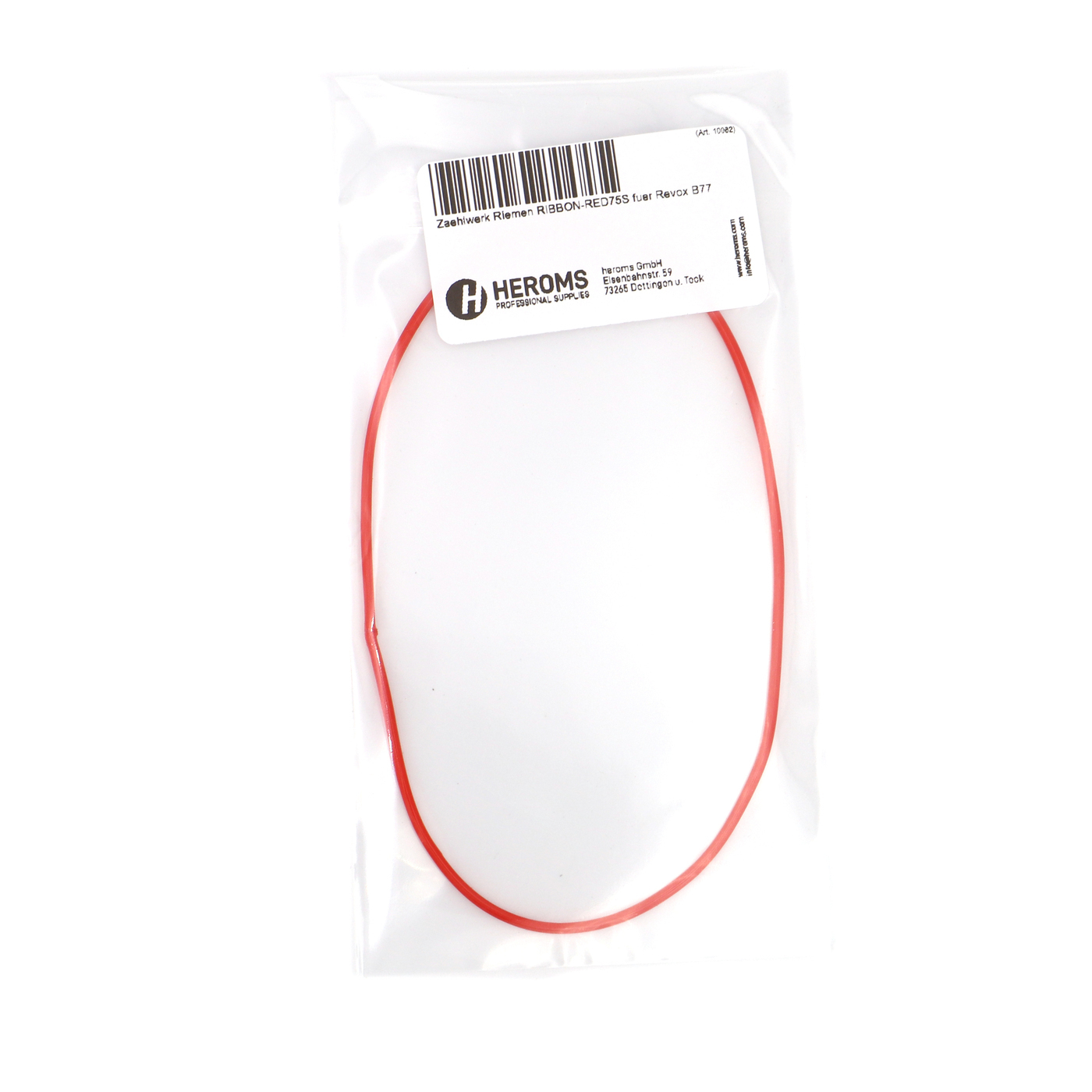

Counter belt RIBBON-RED75S for Revox A77 and B77

High quality, durable, handcrafted precision drive belt

High quality, handcrafted precision drive belt
Material PU Shore 75A - Insensitive to oil, lubricants, ozone, acid and UV influences
Custom-fit spare part for the counter belt of the Revox A77 and Revox B77
Outstanding synchronization values, no slip - 3% preload to maintain optimum torque values
diameter 2mm
1x counter belt RIBBON-RED75S for Revox A77 or B77

€7.95*

Content: 1 Piece

Ships on Monday if order is paid by Monday, 2:00 p.m
worldwide shipping from €7.45
Budget Shipping just 2,95 € (domestic Germany)
One month right of withdrawal

SKU: 10082

Our handmade straps stand out clearly from the quality of the strap sets offered on this platform. Our belt RIBBON-RED75S is not just an O-ring (sealing ring) from industrial production, but a precise, handcrafted length production for the counter of the Revox B77 tape machine. The pre-tension is maintained throughout the life of the belt. An above-average service life and significantly longer service life as well as the insensitivity to ozone, acid and UV radiation protects your wallet.
Technical specification RIBBON-RED75S for register

Elongation at break: 650%
Preload counter Revox B77: 3%
Red color
Force at 3% preload: 3N
Coefficient of friction against Murtfeld S green: 0.40 µ
Coefficient of friction against steel: 0.60 µ
Tear strength: 140 N
Belt operating temperature: -20°C - +60°C
Belt hardness: 75 Shore A
Preload force: 3N
